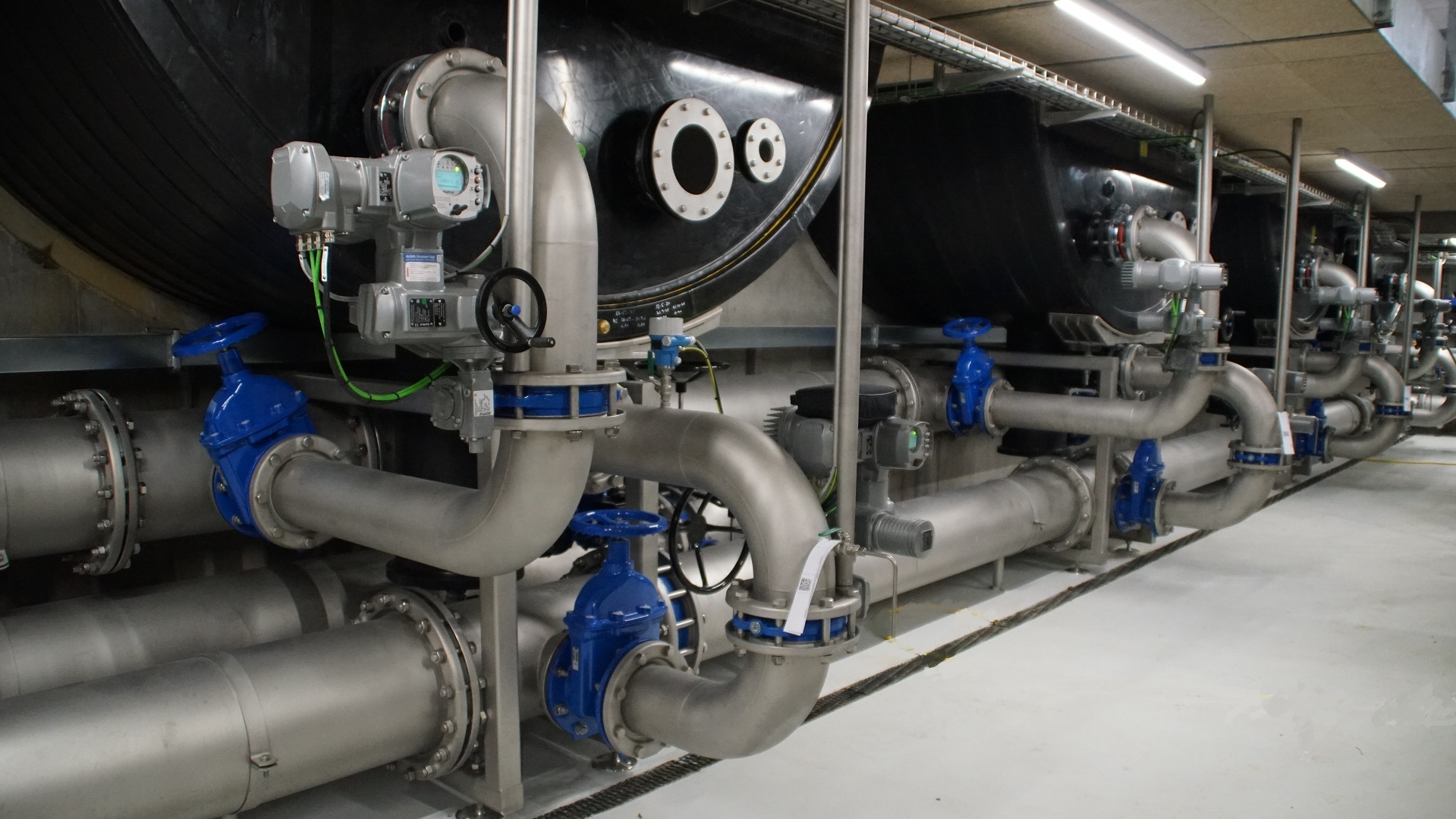

AVK gate valves and butterfly valves installed in the new facility in Aarhus

Case

Benefits of automation and remote control of facility equipment, to store and handle water in the most natural way possible.

A new water storage facility has been established with the purpose of securing a future-safe water supply for the area, near Aarhus in Denmark

The idea to build a water storage facility that holds six XL PE pipe water tanks with a total capacity of 2,000 m3 to meet the water supply demand, improve the staff’s work conditions and obtain the safest drinking water possible in the area replacing a previous installation with a single water tank made from concrete. As concrete cracks over time, and damages are difficult to detect, maintenance or contamination could mean a temporary disruption of supply to the customers, making working with only one tank risky. Having multiple tanks creates more flexibility, as maintenance or cleaning can be undertaken without any interruption of the essential supply. Wanting to build six separate tanks, using PE Plastic materials added extra advantage as it can bend easily and is cheaper in production.

The water works produce more than 250 m3/hour all day from water drillings nearby, which is then filtered and oxygenated before it is sent off to the water tanks The main purpose of the tanks is then to store enough water to assure continuous supply and, while doing so, keep out any contaminating dirt or bacteria from the surrounding soil. Therefore, the tanks have an extra layer added on the outside, and the gap between the inner and outer layer is filled with pressurized air enabling to monitor any changes in the pressure, which would indicate a leak or burst somewhere in or around the tank. Air over the water surface in the tanks enters and exits through an air filtration system, to prevent contamination from the inlet air. Relief and vacuum valves are installed on top of the tanks to secure the tanks from damage caused by sudden changes in air pressure. A small tap is placed on each tank, for regular water quality sampling. he tanks decline slightly towards the inside of the facility, resulting in a self-cleaning feature directing any small particles to a sump pump at the end, where they settle and can be discarded.

In Denmark, permitted drinking water treatment only includes oxygenation and filtering, where adding chlorine is common in almost all other parts of the world. This emphasises the need for a system where the risk of water contamination is brought down to an absolute minimum. Harvesting the benefits of automation Adding more control to the facility equipment is the main driver in reaching the goal of a demand-based supply. Before, outswings in demand were tackled through overcapacity, which will no longer be necessary as the facility will be able to respond to peak or off-peak hours, keeping the resources used at a minimum. Being able to remotely monitor and regulate changes in the facility comes with other advantages. With the finalised setup, no staff will have to rush in at changes but can follow-up and adjust equipment settings from where they are situated. This saves valuable time and efforts, benefitting both staff and end-consumers. Upholding the high quality also means installing equipment with no impact on the water it is in contact with. Hence the facility has been equipped with two large DN400 AVK gate valves at the inlet from the pumping station, and smaller DN200 AVK gate valves and butterfly valves with actuation for both inlet and outlet of each of the six tanks.

By now similar setup ahve been made for upcomming project, five tanks have been checked off and are in use. One out of three pumps are activated and is currently sending 60 m3/hour on its way to the thousands of consumers in the area. The complete facility is expected to be up and running within the year.Next up will be a similar facility in the centre of Aarhus city, where water will be delivered by the pumps here in Kasted. The projects are carried out by Aarhus Vand A/S.

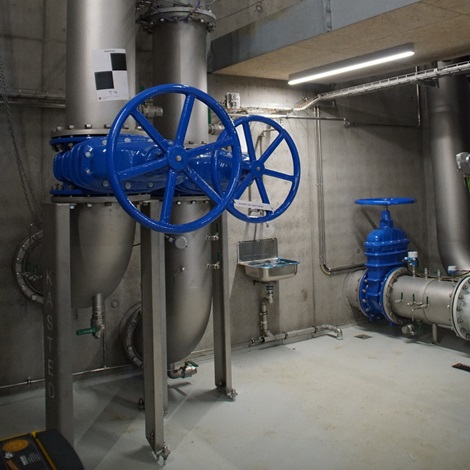

AVK valves DN400 at the inlet from the water works

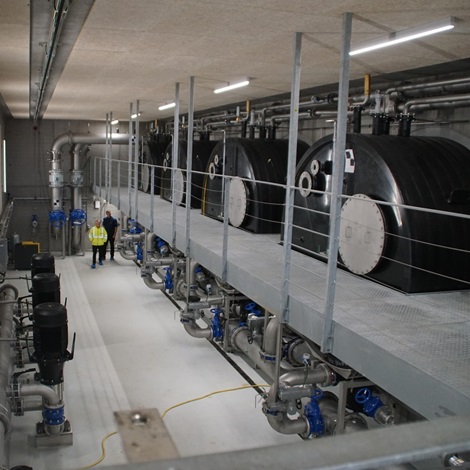

The six PE tanks equipped with AVK gate valves and butterfly valves in the new facility
